YT-LI-70 65-75pcs min speed paper cup machine
| Description | Products Video | Send Inquery |
|---|

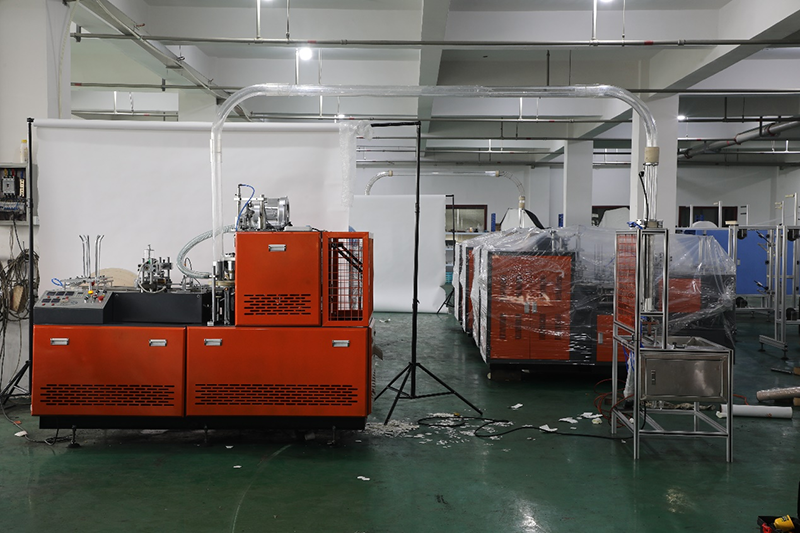

YT-LI-70 65-75pcs/min speed paper cup machine
YT-LI-70 model full automatic 65-75pcs/min speed open cam machine is with direct bottom technology.Technology used in this machine based on Open Cam Technology(used in Korean machines) having no gearbox in this machine.Production capacity of this machine is 65-75pcs/min speed,we can take video 80pcs/min for you if you need.Automatic Alarm & Latest Knurling equipped with this machine.This machine an advance feature of self-oiling & Three strong side shafts are used to achieve a stable operation.
| NO. | Picture | Item No. | Description | Unit Price |
| 1 | YT-Ll | Product Name:YT-Ll Full automatic paper cup forming machine | FOB Ningbo | |
| YT-Ll1 | Specs: | |||
| Cup Size: 2-9oz(40-250ml) | ||||
| Cup Raw Material: Single PE film coated paper(140-320gsm) | ||||
| Productivity: 55-60pcs/min | ||||
| Power Source: 380V,220V,50Hz or other required | ||||
| Total Power: 4kw | ||||
| Weight: 1400kg | ||||
| Paper Sending: Two steps | ||||
| Cup drop: Robotic Arm | ||||
| Machine Size: 2350x1050x1430mm | ||||
| Description: YT-LI Single PE Coated Paper cup machine is an automatic multi-working-station machine with Photosensor detecting, Failure alarming and counting. It's available for making oneside PE film coated paper cup against the procedure of automatic paper feeding, Sealing, silicon-oil lubricating, bottom punching, heating, knurling, curling and cup discharging. One-side PE paper cups are popular for tea, coffee, milk, ice cream etc. We have three different models of this machine | ||||
